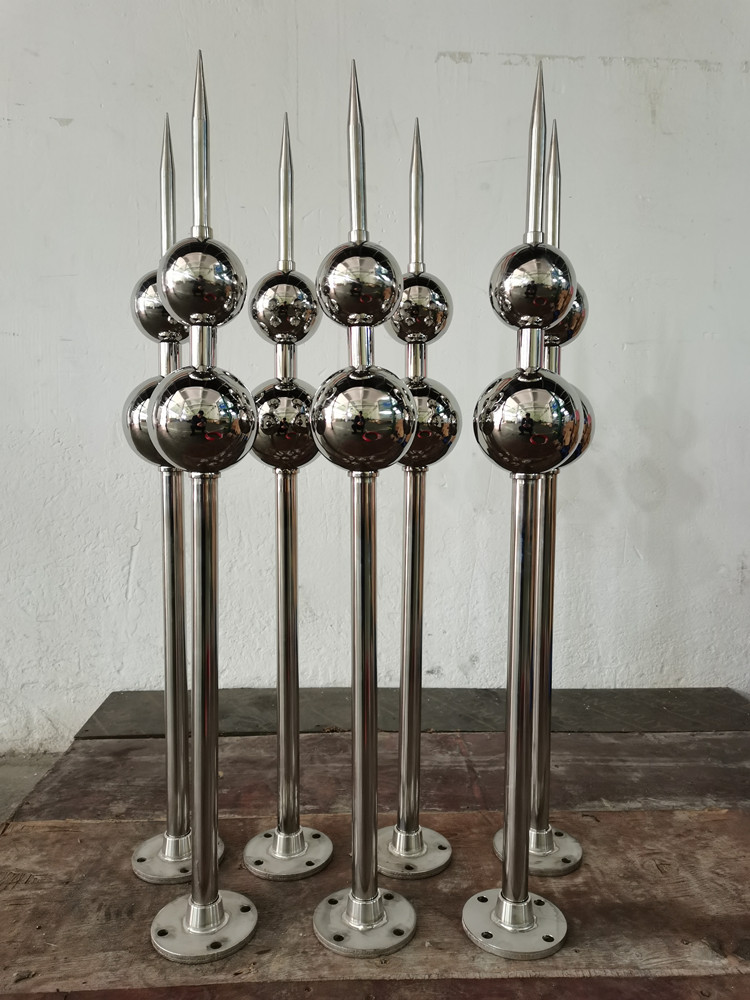

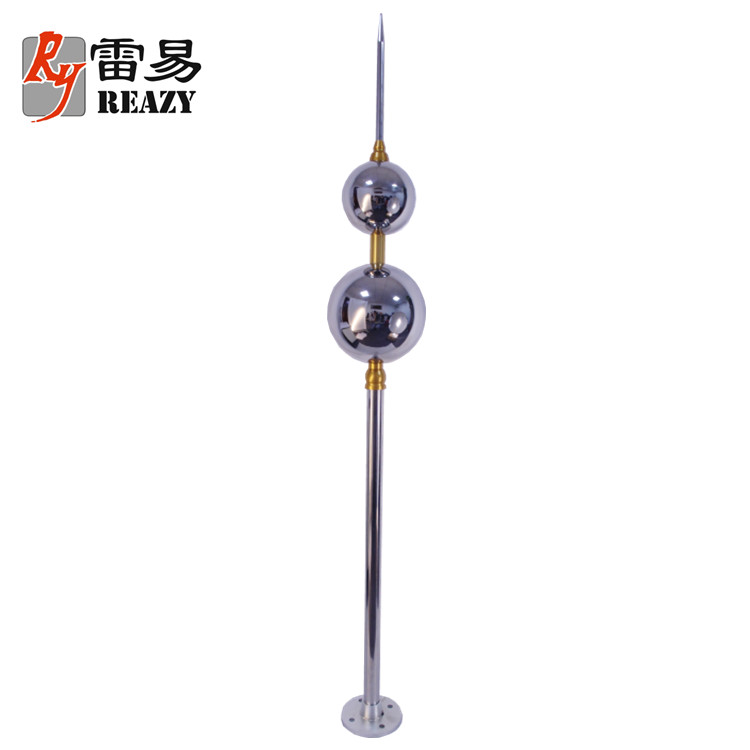

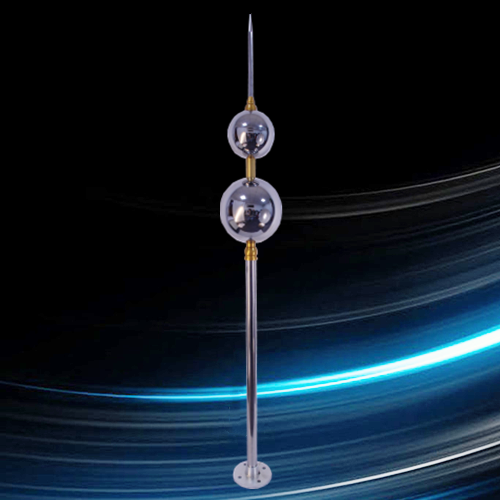

Double Ball Stainless Steel Decorative Lightning Rod

Product Name: Decorative Double Ball Lightning Rod

1. Product Features:

Single-needle ball lightning rod characteristics: a ball-shaped single-needle lightning air-termination device, which is a non-inductive, low-impedance metal inner conductor leading down the wire, transmits the lightning current after flashing to the earth, and makes the protected antenna tower or The building will not be flanked and charged.

2. Scope of application

Wireless communication base stations, flammable and explosive warehouses, high-rise buildings, universities, hospitals, civilian, military ships, historic airport buildings, racetracks, sports field chemicals, rubber, oil depots, weather stations, petroleum gas stations, military bases and mines Field and so on.

3. Technical Parameters

Maximum discharge current (KA) 300

Wind resistance (m/s) 40

Ball diameter (mm) φ250 to φ200

Needle diameter, needle length, needle number (φmm*Mmm*P) φ16*300*1 main needle number: 1

Weight (Kg) 3.8 Total height (m) 1.5~2.0

Flange specification φ120~140 (adapter thread port, user can customize)
