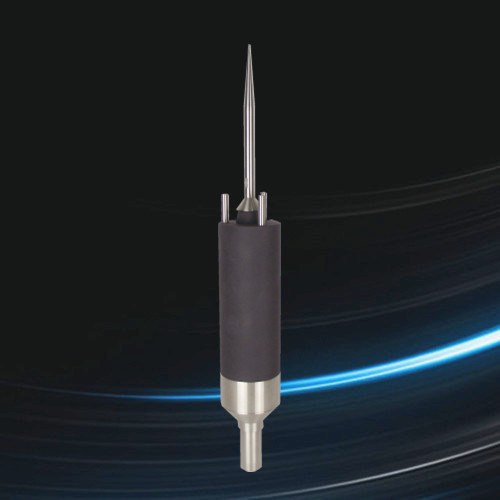

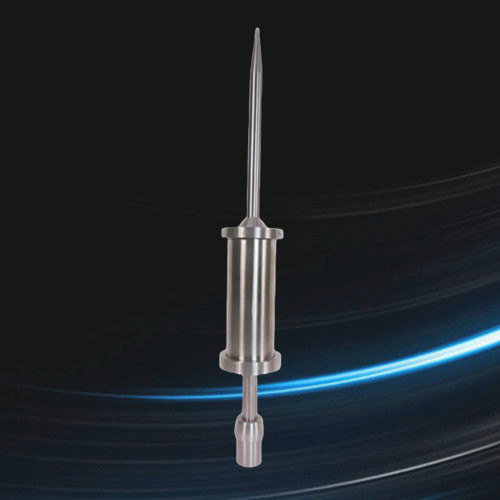

TOPIKE ESE Air Terminal

The principle of TOPIKE predischargeIon lightning rod（E.S.E.), An artificial ion generator absorbs the energy of the downward leading electric field，Generate high voltage, electrolyze the ions around the lightning rod to create an ion beam, creating a most favorable lightning strike point on the planned high point of the area. And the leading down has a positive polarity or a negative polarity, The radioactive lightning rod will follow the polarity of the lower leader, The patented technology of generating positive or negative ions) discharge lightning rods is capable of absorbing the energy of the electric field intensity around the leading four under the thunder cloud, and the intensifier of the lightning rod generates high voltage and spark discharge to ionize the surroundings of the lightning rod. This high-voltage spark discharge will occur a period of time before the lightning strike, and will ionize the air around the lightning rod to the height of the upward lead, resulting in the planned and most effective lightning strike point. When the lightning contacts the lightning rod, the discharge current will be transmitted directly to the grounding electrode along the grounding conductor.TOPIKE pre-discharge lightning conductorAll the operating components of the pre-discharge lightning rod are sealed in a special engineering plastic container and separated from the lightning path，To prevent the lightning rod from being damaged by the discharge current and voltage after being struck by lightning.

Features of TOPIKE pre-discharge lightning conductor:

1.Under the same height and conditions, the protection range is larger than that of ordinary lightning rods.

2. Maintenance-free, corrosion-resistant, no need for power supply and consumable materials.

3. Light weight, simple installation, no need to install additional coaxial

cable.

4. Safe and reliable without radioactive element pollution.

5. The safety factor is improved and the lightning is more accurate.

6. Beautiful appearance.

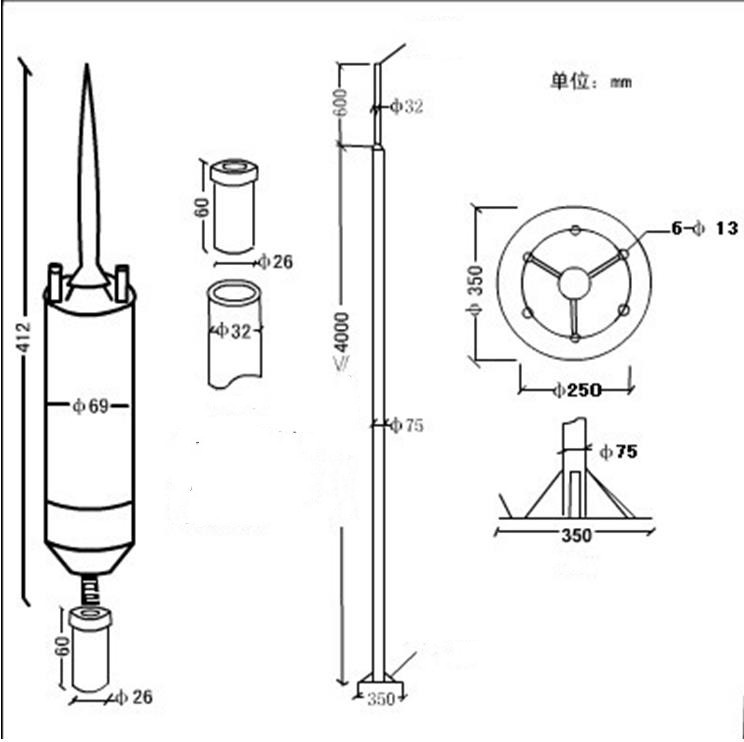

The best device height is 5 meters

The calculation method of the protection radius is in accordance with the French national standard NF C17-102

h= Device height (m)
L=L(m)=V(m/μs)·T(μs)
V=speed (m/μs)
T= Radiation high pressure time in advance (μs)
D= Radius of the forward conductor (m)
LEVEL 1：D=20M (Best protection 0.95≤E≤0.98)
LEVEL 2：D=45M (General protection 0.80≤E≤0.95)
LEVEL 3：D=60M (Standard protection 0≤E≤0.80)
LEVEL 1+Additional equipment (excellent protectionE≥0.98)
