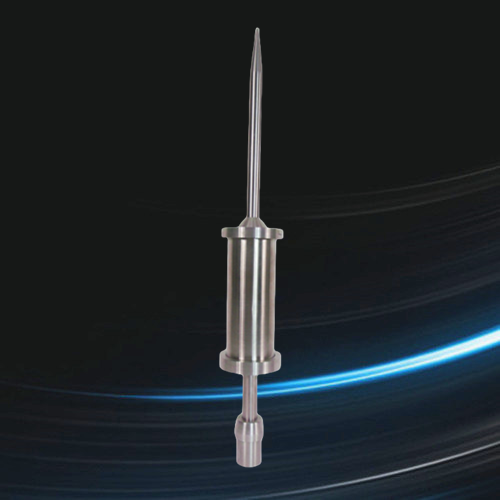

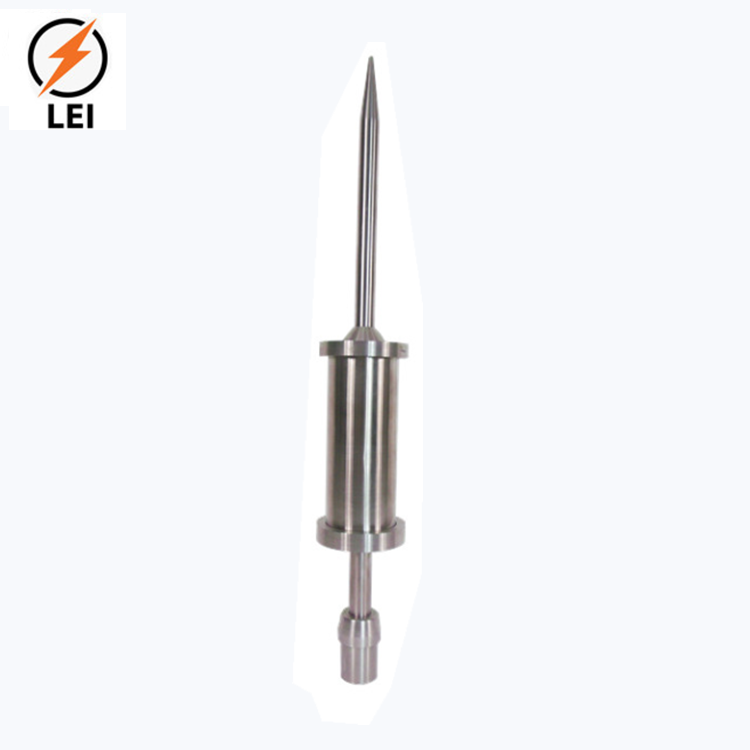

AL ESE Air Terminal Lightning Rod

AL ESE Air Terminal

1.Features
Imported stainless steel material. With high conductivity and corrosion resistance, it can be used for a long time without maintenance.

2. Scope of application

This kind of lightning rod is suitable for residential buildings

3.Technical parameters
Maximum discharge current:300KA
Wind resistance:40m/s

Base:100*100mm

Material:304 Stainless Steel

Installation and use:

4. Installation method:

After opening the package, place the lower part of the lightning rod on the reserved installation position, use M8×60 stainless steel bolt fittings to install and fasten, or weld connection as required.

5. Installation Precautions:

A. It is necessary to ensure a reliable electrical connection between the lightning rod and the lower part;

B. The system is well grounded, and its grounding resistance should be less than 10 ohms;

 C. The protected area shall be calculated according to the rolling ball method stipulated in the "Code for Lightning Protection Design of Buildings".
