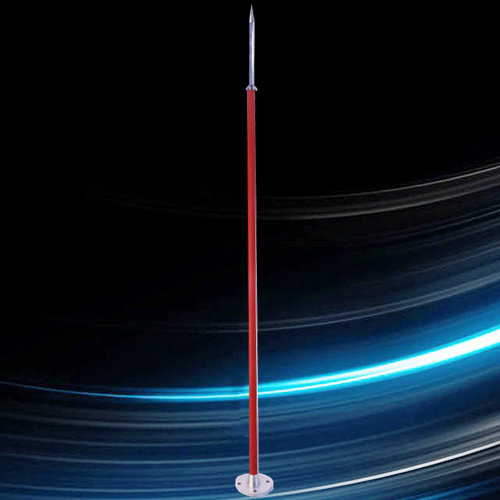

Insulated Stainless Steel Frankling Lightning Rod

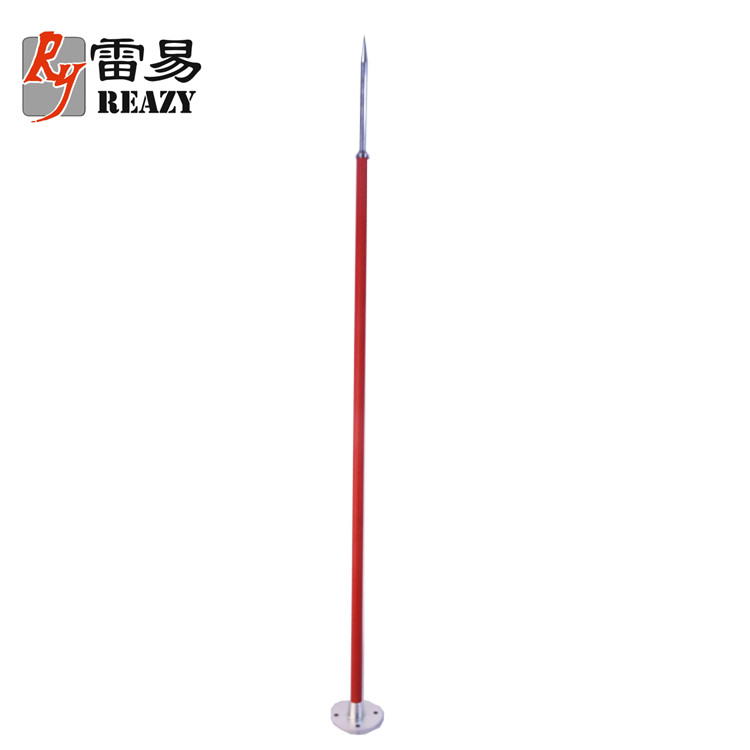

Name of Products: Single pin insulated lightning rod

Working principle:
 In thunderstorms, when charged clouds appear over tall buildings, the lightning rod and the top of the tall building are induced to a large amount of charge. Because the tip of the lightning rod is pointed, the conductor tip always accumulates the most charge during electrostatic induction. In this way, the lightning rod uses the tip discharge phenomenon to allow the electric charge induced by the thundercloud on the protected building or equipment to be released into the atmosphere in a timely manner, avoiding its excessive accumulation and causing a huge lightning strike accident. At the same time, when lightning occurs, the lightning rod can also attract the lightning discharge channel, allowing the lightning current to flow from the lightning rod to the ground, avoiding huge currents from damaging buildings or equipment.

Features：

The ordinary lightning rod series has a unique design concept. It adopts comprehensive technologies such as pilot discharge, impedance current limiting, and air gap discharge, which can generate an advance pilot channel, improve the effect of lightning, reduce the discharge voltage, and change the discharge process of the lightning current. The lightning waveform is broadened, the wave head is gentle, and the amplitude is reduced, thereby expanding the protection range. It avoids the phenomenon of "side strike" and "bypass strike", and effectively suppresses the harm caused by ground potential counterattack. It is an ideal equipment for preventing direct lightning strikes.

Features：

1. Lead the mine ahead of time and accurately guide the mine into the ground

2. Reduce lightning current amplitude and steepness

3. Good lightning effect and large protection range

4. Beautiful appearance, convenient and firm installation

Ordinary lightning rod series, beautiful appearance, built-in perceptual materials, is not only an effective facility to protect against direct lightning strikes, but also an architectural artwork and decoration.

The scope of products:

Mainly applicable to: wireless communication base stations, flammable and explosive material warehouses, high-rise buildings, universities, hospitals, civil, military ships, airports, historic buildings, racetracks, sports fields, chemicals, rubber, paint factories, radars Stations, oil depots, weather stations, petroleum gas stations, military bases, mines, etc.

Installation and maintenance:

Ⅰ. Ordinary lightning rod installation instructions

1. Use electric welding to weld the bottom of the lightning rod main pole and the lightning rod heightening mast (seamless steel pipe or galvanized steel pipe, etc.); or use a special needle to connect with a flange.

2. Tighten the main needle tip with a wrench.

3. Vertically hoist the welded mast.

4. The base of the mast should be welded with two down conductors in a 180-degree direction to connect with the grounding grid or lightning protection belt; if there are down conductors and lightning rods, they should be directly connected to the grounding grid or lightning protection belt.

Ⅱ. Matters needing attention

1. Avoid collision during transportation and hoisting.

2. When connecting the lightning rod and the mast, a straight line should be formed.

3. The welding points should be firm, and anti-corrosion measures should be added, such as anti-rust paint, silver paint, etc.

4. The height of the lightning rod and the grounding of the down conductor should meet the requirements of the "Code".
