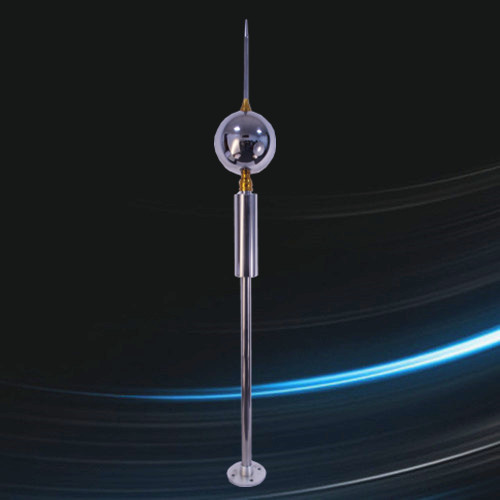

Stainless Steel Sphere Type Lightning Rod Manufacturer in Guangzhou China

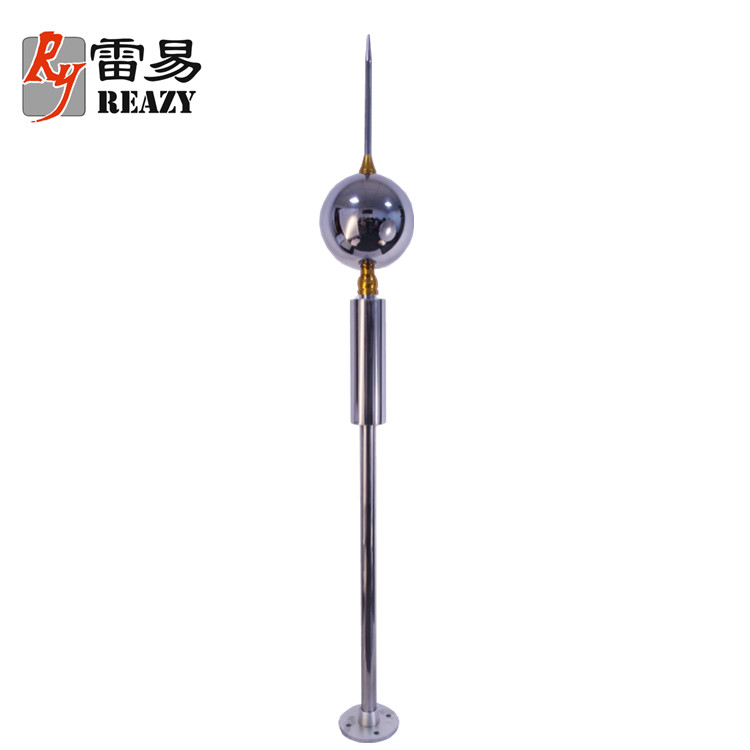

Product name: spherical decorative optimized lightning rod

1. Product Features:

Spherical decorative lightning rod characteristics: a spherical single-needle lightning air-termination device, which is a non-inductive, low-impedance metal inner conductor leading down the wire, transports the lightning current after the flashover to the earth, and makes the antenna tower or building protected Objects will not be flanked and charged.

2. Scope of application

Wireless communication base stations, flammable and explosive warehouses, high-rise buildings, universities, hospitals, civilian, military ships, historic airport buildings, racetracks, sports field chemicals, rubber, oil depots, weather stations, petroleum gas stations, military bases and mines Field and so on.3. Technical Parameters

Maximum discharge current (KA) 300

Wind resistance (m/s) 40

Ball diameter (mm) φ250~φ200

Needle diameter, needle length, number of needles (φmm*Mmm*P) φ16*300*1 Main needle number: 1

Weight (Kg) 5.5 Total height (m) 1.5~2.0 (Height can be customized)

Flange specification φ120~φ140 (adapter thread port, user can customize)
