PRODUCT

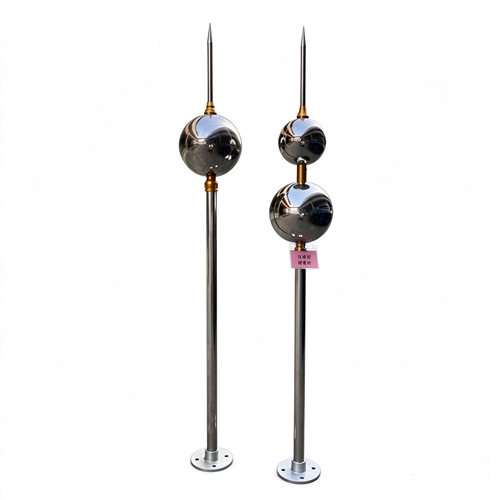

Decorative Stainless Steel Single Ball Lightning Rod
Product Name: Decorative Stainless Steel Single Ball Lightning Rod
Ⅰ.Product features：
Characteristics of single needle ball lightning rod: The ball shaped single needle lightning arrester is a non inductive, low impedance metal inner conductor down conductor that delivers the lightning current to the ground after receiving the lightning, and prevents the protected antenna tower or building from side impact and electrification.
Ⅱ.Range of application:
Wireless communication base stations, flammable and explosive warehouses, high-rise buildings, universities, hospitals, civilian and military ships, historic airport buildings, horse racing tracks, sports field chemicals, rubber, oil depots, meteorological stations, oil and gas stations, military base mines, etc.
Ⅲ.Technical parameters:
Maximum discharge current (KA) 300
Wind resistance strength (m/s) 40
Ball diameter (mm) φ 150
Needle diameter, needle length, number of needles (mm * Mmm * P), diameter of 16 * 300 * 1, number of main needles: 1
Weight (Kg) 3.5 Total height (m) 1.5~2.0
Flange specification: φ 120~140 (adapter threaded port, user customizable)
