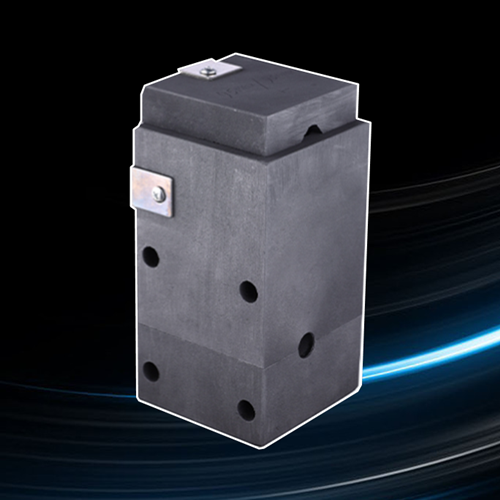

Exothermic Welding Mould BB44
Exothermic Welding Mould BB44

Exothermic Welding Mould BB44

Product ID : BB44
Product Attributes :

We provide common sizes, we also can do according to your requests. Please contact us to get to know more information about our products and service.

Product Description

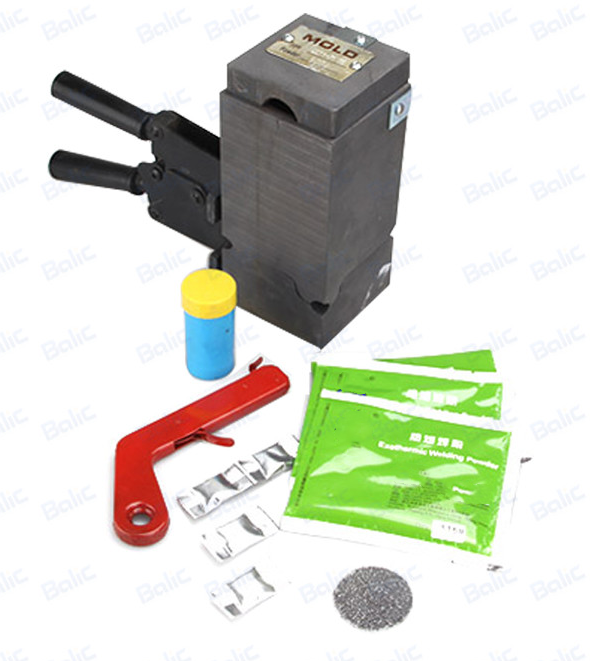

Reazy is a Exothermic Welding Materials manufacturer.The Exothermic Welding is a simple, effective,quality welding method,which weld the parts to desired size and type in graphite mould cave with overheat melting.Currently,the exothermic welding replaced mechanical connection widely.

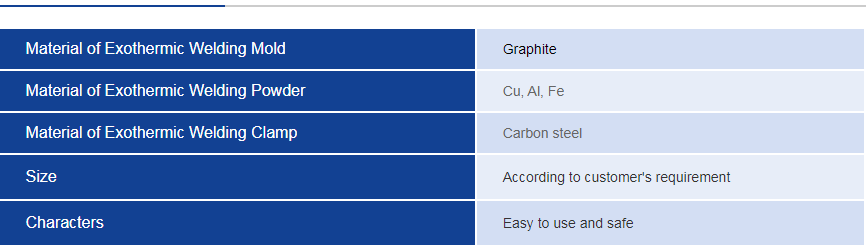

Exothermic Welding Mold: The mould is made of quality graphite body to obtain the perfect seal and lasting performance.The life of our mould can be 80-100 joints,which is more lasting than other competitor’s.

Exothermic welding powder: We mix the powder comply with your conductor’s material and size with reasonable ratio ,so the joint is more strong and more lasting.

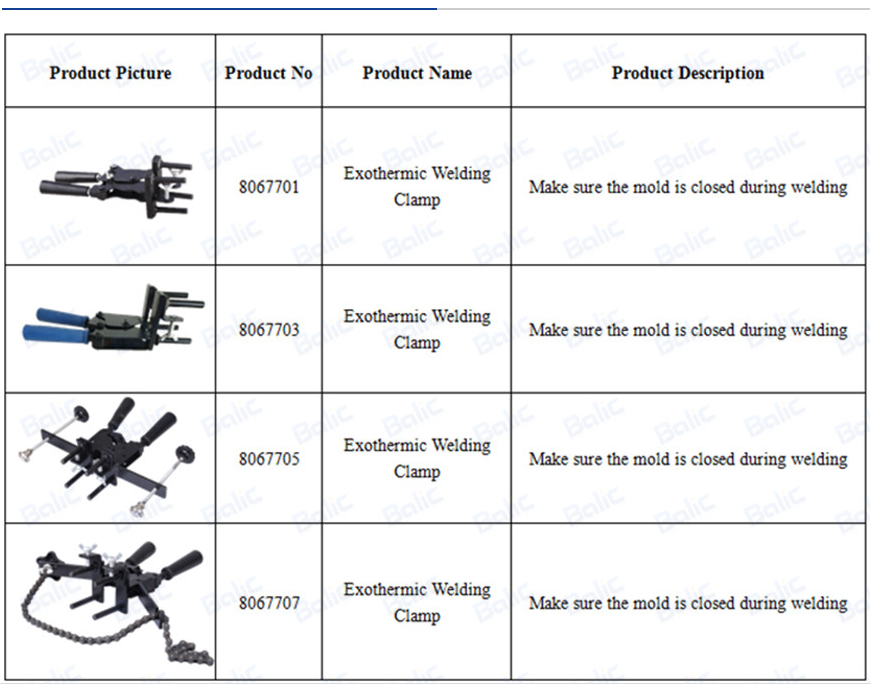

Exothermic Welding Clamp: The clamp make sure the mold is closed during welding. We can provide the scale of the mold, or we can make the clamps according to the customer's demand.

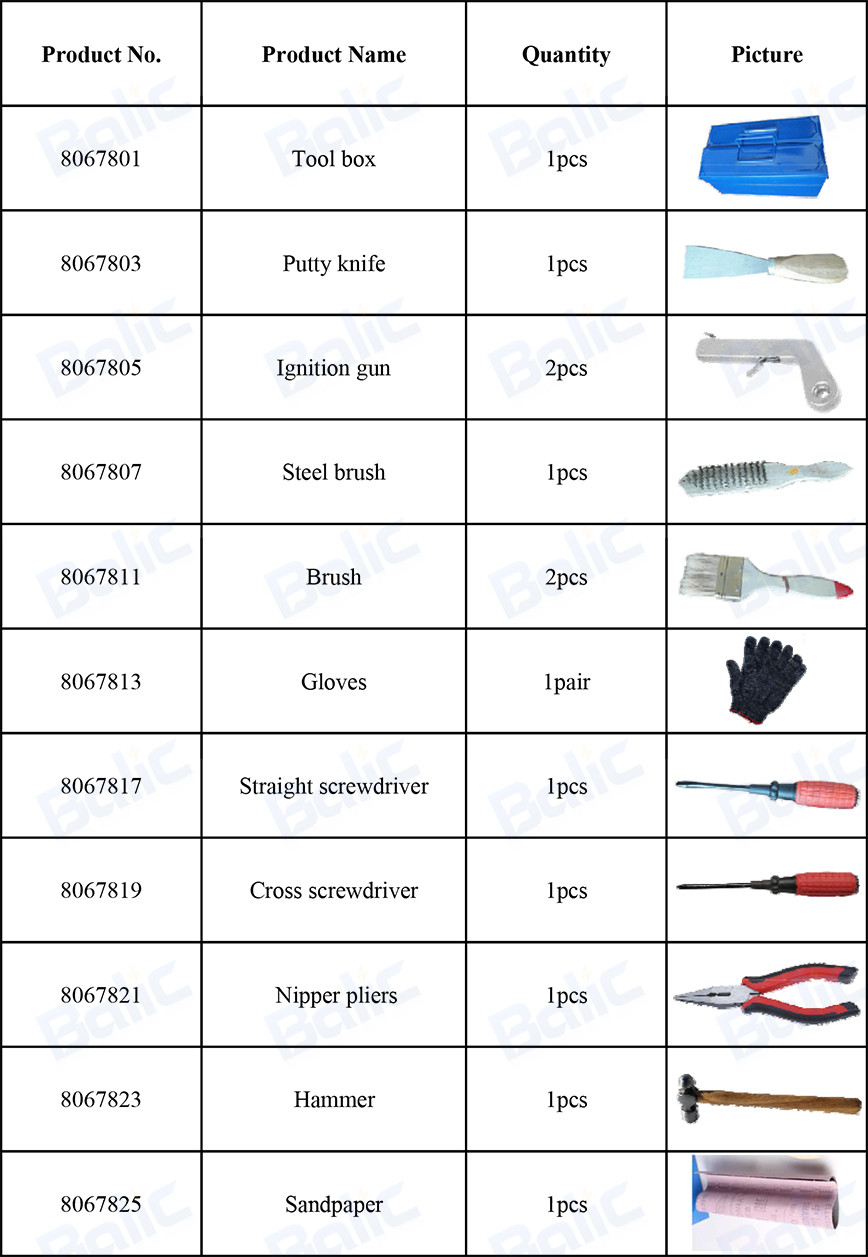

Welding toolbox: We offer the full sets tools to meet your demand,including ignition gun,brush,screwdriver and glove. It is a package box to meet your whole demand.







(1).Good current loading ability:The welding point current loading ability is same to that of conductor;

(2). Good mechanical performance: The connection is a molecular connection. It is a permanent connection ,no loss or corrosion result to high resistance;

(3). Stable dash current resistance: The test shows that in the surge of big current in short time, and the conductor melts earlier than the connection point, no damaged by surge current.

(4). Good resistance to corrosion: The welding joint is covered by copper and more strong than copper, it provides good resistance to corrosion.

(5). Simple and safe connection: Neither outside power nor facility is required. It take very little time to finish one welding both indoor and outdoor.

(6). Free control the reaction temperature:  Different welding powder is provided according to the metal features, so the welding powder can be very solid.


Welding Fluxe is also called aluminium heat welding powder.Use proper exothermic fluxes to make the connection joints more solid and extend the using life.

Main content and ratio of welding powder:

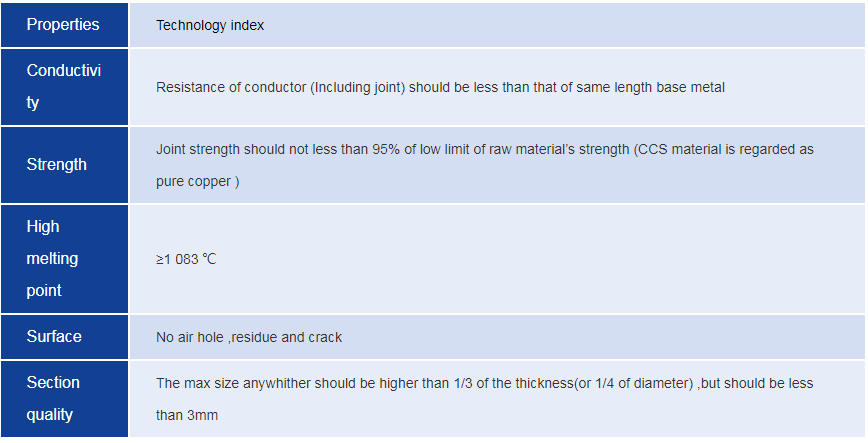

                                                                                     Physical properties of joint

Properties of joint:

Resistance of joint:

Strength of joint:

Store instruction :The flame point of powder is very high ,so pyrophoric powder is must to ignite, the store condition should be dry ,cool ,no shine ,no humidity.If the packing damaged ,please don’t use.


Graphite absorbs moisture. Ignite the propane torch and dry out the inside of the mold thoroughly on both sides, heating the mold

Use a soft cotton cloth or a soft bristle brush to clean inside the mold cavity and cover.

Check to ensure the graphite mold is not worn or broken, which could cause leakage of molten weld metal during the reaction.

The clamp is used for open-closing mould ,so the tightness of clamp is very important to the welding quality ,please carefully check and adjust the clamp before welding as following:

(a)Keep the clamp open

(b)Loosen the fixing buckle of clamp

(c)Pick out gim peg

(d)Adjust the regulating screw and contrarotate (Loosen )

(e)Pin the gim peg and buckle

(f)Open clamp and check the result

Close the grips to tightly lock the mold. Check for an appropriate seal on the mold. If the mold does not seal properly, make adjustments to tighten/loosen the handle clamp.

The mould is made of graphite and very gentle ,so don’t throw or impact .Meanwhile the mold must be correct for the conductor size and application. Don’t remove the residue with hard tool

If the conductor size is smaller than specified ,there will be copper liquid omitting .The following remedy for reference :

(1)Use proper thickness copper pipe or copper bush

(2)Use copper piece or copper tape

(3)Use seal

(4)Use Pyrocotton tape

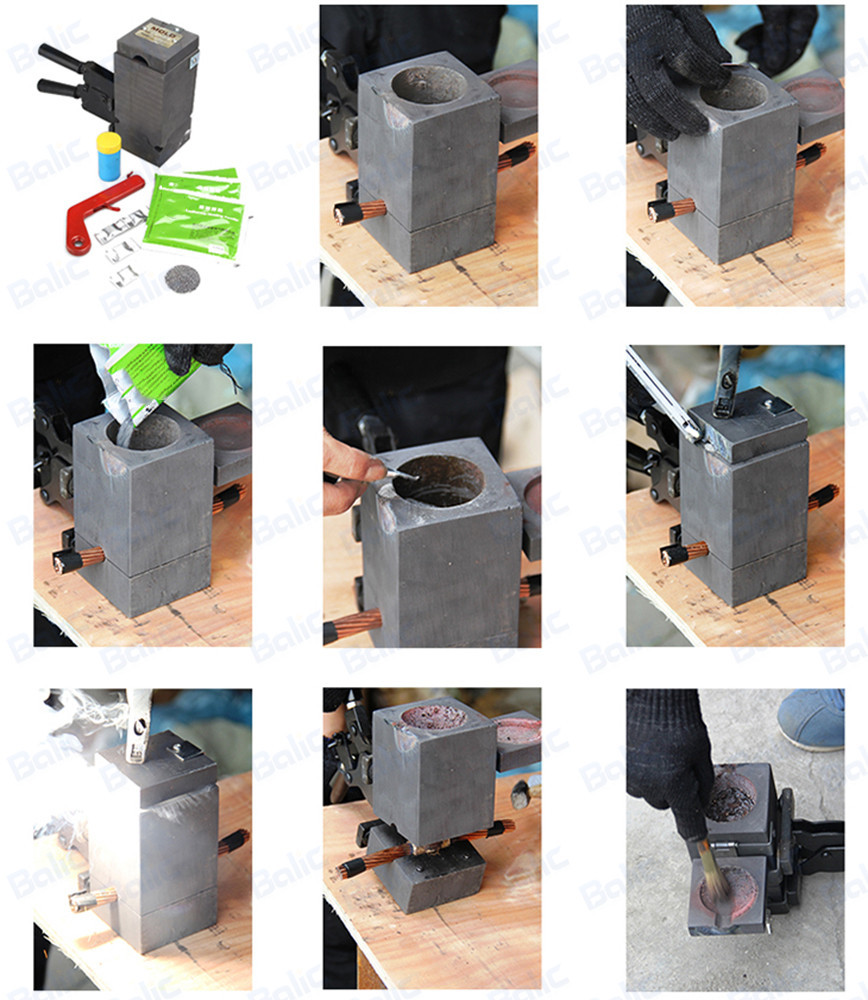

(1)Check to ensure the graphite mold and conductor is clean ,no residue before making the connection.

(2)Use a propane torch to dry wire conductors and remove remaining cleaning residue, solvent, or water before making the connection.

(3)Close the graphite mold lid before ignition ,and close the lid tightly.

(4)Insert the conductors and position them for the connection.Ensure them in the center of cavity.

(5)Keep the irrelevant personnel 1.5M away when welding.

(6)Keep the inflammable goods 1-2M away when welding.

(7)The operator must be equipped thermal barrier glove.

(8)Don’t face to the mould opening when welding.

(9)The operator keep 1.5M away mould is must after ignition.

(10)Don’t touch the mould and connected parts directly after welding.

(11)Open the mould and take the joint out with wrench 10-20S later after reaction.

(12)Insulate the joint after the conductor cooling completely.


All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
