The Importance of Lightning Protection for BESS Energy Storage and Photovoltaic Systems

In photovoltaic (PV) energy storage systems, lightning protection system (LPS) is a core component to ensure safe and stable operation of the system, reduce property losses, and avoid casualties. Its importance can be elaborated from three dimensions: system characteristics, lightning strike hazards, and economic and safety value, with targeted analysis combined with the application scenarios of PV energy storage (outdoor installation, DC high voltage, and battery energy storage units).

I. The Lightning Susceptibility of PV Energy Storage Systems Determines the Necessity of Lightning Protection

1.Outdoor exposed installation

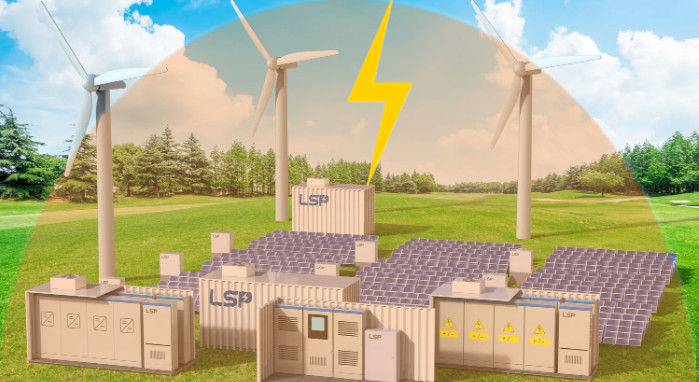

PV modules are usually installed on open roofs or ground, and energy storage containers are mostly installed in supporting facilities within PV power plant areas. Both are high-risk areas prone to lightning strikes. In particular, ground-mounted PV power plants have module arrays higher than the surrounding terrain, making them vulnerable to direct lightning strikes. Direct lightning strikes can directly hit modules, supports, or energy storage units, while induced lightning (electromagnetic pulses) can intrude into the internal system through power lines and signal lines over long distances via coupling.

1. DC high-voltage characteristics

The output DC voltage of series-connected PV arrays can reach 600V–1500V, much higher than that of conventional low-voltage distribution systems. Over voltage caused by lightning strikes will superimpose on the DC bus, breaking down the insulating components of inverters, combiner boxes, and power conversion systems (PCS). Meanwhile, DC systems have no zero-crossing points, making arc extinction difficult. Once insulation breakdown occurs, it is prone to sustained short circuits and fires.

2. Explosion and fire risks of energy storage units

The core of energy storage systems is lithium batteries (lithium iron phosphate, ternary lithium, etc.), which are extremely sensitive to over voltage and over current. Surge currents caused by lightning strikes can lead to thermal runaway inside the batteries, further triggering fires and explosions and causing more severe safety accidents than conventional PV systems.

II. Multiple Hazards of Lightning Strikes to PV Energy Storage Systems

1.Equipment damage and system paralysis

○Direct lightning strikes can directly burn out PV modules, inverters, PCS, and battery clusters, resulting in the scrapping of core equipment.

○Electrical surges generated by induced lightning can damage semiconductor devices (IGBTs, MOSFETs), control boards, and sensors inside the equipment, leading to system shutdown. Moreover, recessively damaged components may suddenly fail during subsequent operation, increasing the difficulty of operation and maintenance.

2.Fire and electric shock safety accidents

○DC short-circuit arcs caused by lightning strikes and battery thermal runaway are among the main causes of fires in PV energy storage power plants.

○Insulation damage of equipment may cause the housing to become live, posing an electric shock risk to operation and maintenance personnel.

3.Economic losses and power supply interruptions

○The replacement of core equipment, power generation losses caused by system shutdown, and repair costs after fires will bring huge economic burdens to power plant operators.

○Energy storage systems undertake functions such as peak shaving and backup power supply. Shutdown caused by lightning strikes will affect grid stability or interrupt power supply to critical loads.

3. Violation of standard compliance requirements

The acceptance of BESS PV energy storage projects must comply with standards such as IEC 62305 (Lightning Protection), IEC 61643 (Surge Protective Devices), and GB 50057 (Code for Design of Lightning Protection of Buildings). Projects lacking effective lightning protection measures cannot pass acceptance and are also difficult to obtain insurance claims.

III. Long-term Value of Lightning Protection: Ensuring the Safety and Benefits of the System Throughout Its Life Cycle

1.Reducing operation and maintenance costs

A sound lightning protection system can significantly reduce equipment failure rates, avoid frequent shutdowns for maintenance, and extend the service life of PV modules, energy storage batteries, and power electronic equipment.

2. Improving power plant reliability

Lightning protection measures can effectively resist natural disasters such as lightning strikes, ensuring the stable operation of the system during thunderstorm-prone seasons and guaranteeing the long-term benefits of the power plant.

3. Meeting safety regulatory requirements

With the frequent occurrence of fire accidents in PV energy storage power plants, domestic and foreign regulatory authorities have imposed increasingly strict requirements on lightning protection and overvoltage protection. Compliant lightning protection design is a prerequisite for the legal operation of projects.

Conclusion

Lightning protection for PV energy storage systems is not an optional configuration, but a core technical link directly related to system safety, economic benefits, and compliant operation. It is necessary to design a coordinated scheme of direct lightning protection (lightning receptors, down conductors, grounding) and induced lightning protection (surge protective devices (SPD), equipotential bonding) in accordance with the lightning activity intensity (thunderstorm days) of the project site and the risk assessment method specified in IEC 62305, so as to achieve the safe and stable operation of the system throughout its life cycle.

LEISIDUN specializes in the production and manufacturing of lightning protection products for BESS energy storage photovoltaic power plants and PV solar farms, complying with technical standards such as NF C17-102:2011 and IEC62305. Our product range includes: ESE pre-discharge lightning rods, support masts, down conductors, grounding rods, grounding accessories, exothermic welding materials, and grounding enhancement materials. LSD can provide turnkey lightning protection solutions for renewable energy facilities
