HEPL-RY Electromagnetic Pulse Lightning Protection Device

HEPL-RY Series of high voltage power lines

Product Introduction of Electromagnetic Pulse Lightning Protection Device

Product Introduction and Principle

The HEPL-RY series high-voltage electromagnetic pulse lightning protection device for power lines is a discharge gap switch type direct lightning protection device developed and tested by Guangzhou Leisdun Electric Technology Development Co., Ltd. after years of research and development.

The research and development technology principle is that the HEPL-RY series high-voltage electromagnetic pulse lightning protection device for power lines belongs to the discharge gap switch type direct lightning protection device. It introduces the lightning current into the high-voltage electromagnetic pulse wave resistance device inside the device through a lightning arrester. While forming a self energy dissipation circuit oscillation, it discharges and absorbs part of the lightning energy through the circuit capacitor gap, thereby softening the lightning current, reducing the amplitude and waveform steepness of the lightning current.

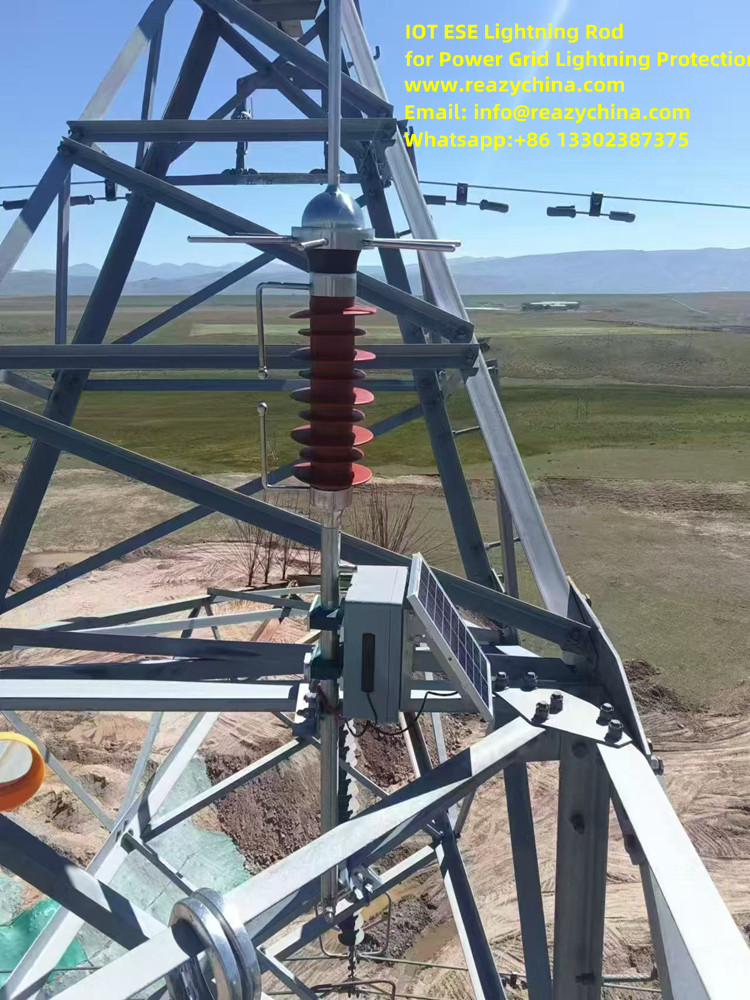

The installation of this series of lightning protection devices on overhead transmission lines can significantly reduce the probability of lightning flashover, guide the discharge of lightning energy to the ground, and avoid the generation of large step voltages, effectively preventing the occurrence of flashover and counterattack on the lines.

Product structure composition

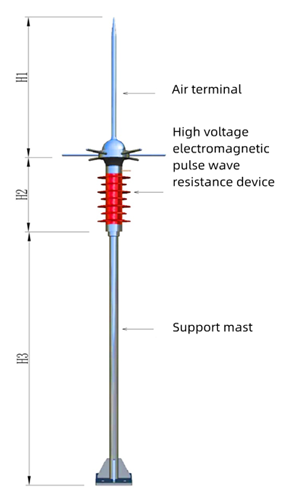

The main structure of the HEPL-RY series high-voltage electromagnetic pulse lightning protection device for power lines consists of three parts: the lightning rod, the high-voltage electromagnetic pulse wave resistance device (referred to as the wave resistance body), and the support needle rod. Its structure is shown in Figure 2 below.

Product Technical Features

1.Technical parameters and performance requirements:

The product body of the HEPL-RY series high-voltage electromagnetic pulse lightning protection device for power lines mainly consists of stainless steel lightning arrester, silicone rubber jacket, high-voltage electromagnetic pulse wave resistance device, stainless steel support needle rod, and grounding conductor.

2.Factory inspection requirements:

The overall surface of the HEPL-RY series high-voltage electromagnetic pulse lightning protection device for power lines should be clean and free of dents, scratches, and deformations during factory acceptance. The overall components and their assembly positions should be firm, without virtual soldering, cracking, or mechanical damage.

The surface area of a single defect on the silicone rubber jacket of the device (such as missing glue, impurities, protrusions, etc.) should not exceed 5mm2, and the depth should not exceed 1mm. The raised surface and joint should be cleaned and leveled, and the raised height should not exceed 0.8mm. The raised height of the bonding joint should not exceed 1.2mm, and the total defect area should not exceed 0.2% of the total area of the silicone rubber jacket.

The lightning protection device's wave resistance body should undergo 100% testing, that is, high voltage impact testing should be conducted on the wave resistance body in two states: not connected to the circuit or connected to the circuit. During the experiment, charge the impulse current testing device to generate a 4/10 μ s impulse current with an amplitude of 10kA~120kA, and compare the impulse wave modes in the two states for measurement.

In the connected circuit state, the surge waveform of the surge resistor of the lightning protection device should have a wave head time of ≥ 12 μ s and a current amplitude of ≤ 60KA. If the wave head time is extended by more than 200% compared to the unconnected circuit state, the current amplitude should decrease by no less than 50%, and the current steepness should decrease by no less than 85%, it is a qualified product.

3.Product advantages:

Suitable for transmission lines of various voltage levels;

Small size, light weight, easy to install on towers;

High protection performance, can effectively reduce lightning current amplitude by more than 50% and steepness by more than 85%. Compared with conventional lightning rods (not suitable for installation on 220kV and below voltage level transmission lines with low lightning resistance), it is suitable for installation on ultra-high voltage and below AC/DC transmission lines, with a wider coverage range;

Even in the event of a malfunction, it does not affect the normal, safe, and reliable power transmission of the line;

The product is maintenance free and can significantly improve the lightning resistance level of the line, reducing the lightning flashover rate of the line.

4.Conditions of Use

The ambient temperature is between -50 ℃ and+50 ℃;

The maximum wind speed shall not exceed 48m/s;

Areas with seismic intensity of 7 degrees or below;

The thickness of ice cover shall not exceed 2cm;

Note: The above are general usage conditions. In other special environmental situations, the manufacturer should optimize the parameters or adjust the structure of the product.

Applicability analysis of the product for high-voltage transmission lines in the power grid

Due to the wide distribution range and diverse terrain along the transmission lines of China's State Grid, as well as the complex characteristics of lightning activity in different regions. According to meteorological data statistics, thunderstorms have been increasing year by year in many regions of China, and the areas with frequent lightning activity have expanded.The 35KV-750kV overhead high-voltage transmission line, as the outdoor main channel of the power grid transmission line, will cause significant economic losses in the event of a lightning strike tripping fault.

For the increasing risk of lightning strikes in high-voltage transmission lines, traditional measures such as enhancing insulation, reducing protection angle, and lowering grounding resistance can no longer fully meet the direct lightning protection needs of high-voltage transmission lines. Therefore, the safety and stability of high-voltage transmission line operation are facing huge challenges.

To cope with the risk of lightning strikes on high-voltage transmission lines, the HEPL-RY series high-voltage electromagnetic pulse lightning protection device for power lines is a new type of direct lightning protection device for high-voltage transmission lines, Its own performance characteristics perfectly solve the risks and challenges of high-voltage transmission lines mentioned above. By installing HEPL-RY series high-voltage electromagnetic pulse lightning protection devices on high-voltage transmission lines, the risk of lightning tripping can be directly reduced, thereby ensuring the safe and stable operation of intelligent power grids.

1. Terrain classification of high-risk nodes for lightning strikes on power grid transmission lines
