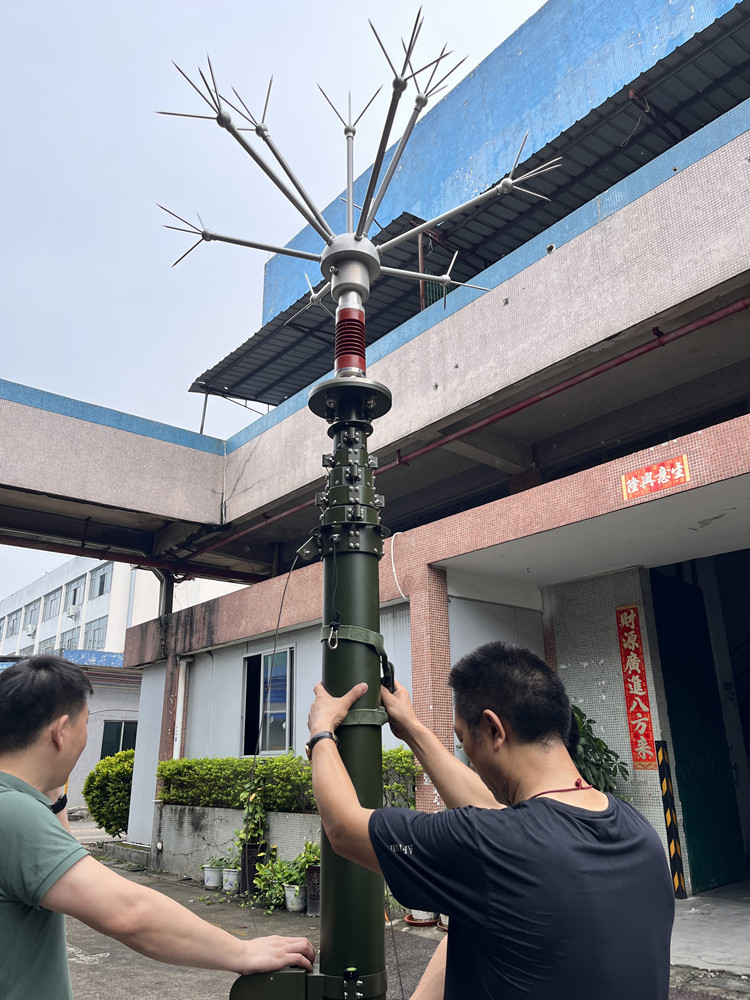

Passive plasma lightning rejection device

Product name：Passive plasma lightning rejection device (hereinafter referred to as English)Plasma Lightning Rejection System ,abbreviation:PLR)。

Product working principle：

The PLR lightning rejection device is a non flash dissipating direct lightning protection device that generates and emits ion charges during operation, and through the force of ion charges, neutralizes the accumulated lightning cloud charges and the charges induced by the lightning cloud electric field on the ground. Through this manual intervention, lightning strikes are reduced, and the phenomenon of regional lightning strikes is eliminated, thereby achieving lightning protection safety for the protected object.

Technical parameters：

1.     Scope of protection：

Anti mine protection angleβ≥84°；

The converted lightning protection radius R=10 * H (H is the relative installation height of PLR).

2.      Grounding method: Meet the requirement of not requiring a small resistance grounding body to discharge lightning current.

3.     Grounding resistance: ≤ 1200 Ω.

4.     Material: High conductivity alloy (aluminum magnesium alloy).

5.     Overall structural type: assembled.

6.     Service life: 30 years.

7.     Environmental adaptability

working conditions: -40℃～+55℃；

storage conditions: -50℃～+70℃；

relative humidity: 95% ± 3% (ambient temperature+30 ℃~+60 ℃);

solar radiation: meets the requirements of GJB1507A-2009;

working wind speed (level): 28m/s (level 10);

survival wind speed (level): 36.9m/s (level 12).

5.Three defense requirements

It has moisture-proof, salt spray proof, and mold proof functions, and meets GIB requirements daily.
